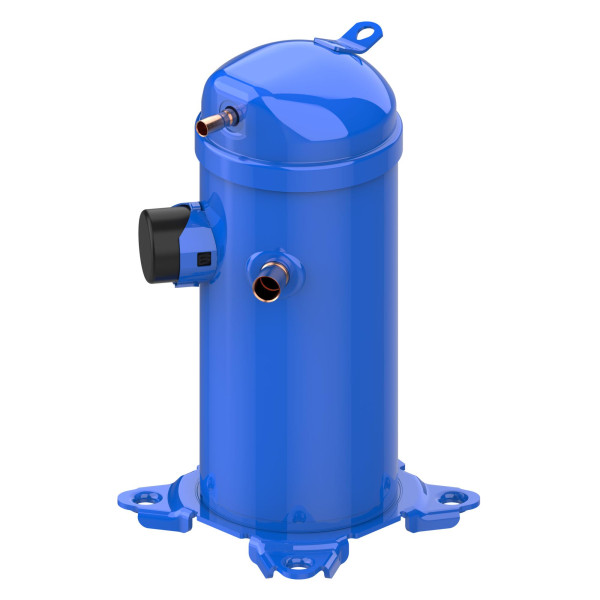

Scroll Compressor HRP047T1LP6 – Danfoss 121L3347

The Danfoss HRP047T1LP6 is a powerful scroll compressor designed for use in R407C air conditioning systems. This hermetic, fixed-speed unit runs on 208-230V/1/60Hz and delivers up to 47,000 BTU/h of cooling capacity. Engineered for heavy-duty residential and light commercial use, it features increased oil volume, internal motor protection, and rugged construction for long-lasting performance.

Key Features

• Refrigerant: R407C
• Cooling Capacity: Approx. 47,000 BTU/h (3.9 Tons)
• Power Supply: 208-230V, 1 Phase, 60Hz
• Oil Type: PVE, 1.33 L charge (160HV)
• Compressor Type: Hermetic Scroll – Fixed Speed
• Discharge Connection: 1/2 inch ODF
• Suction Connection: 3/4 inch ODF
• Motor Protection: Internal overload protector
• Certifications: UL, CE, UKCA compliant
• Max Pressure: High side 31.1 bar, Low side 26.2 bar

Applications

Suitable for higher-capacity residential and light commercial air conditioning units using R407C. Ideal for rooftop systems, ducted split applications, and packaged A/C systems requiring over 3.5 tons of cooling.

Competitor Equivalent Part Numbers

• Copeland ZR47K3E-PFV
• Emerson ZR47K5E-PFV
• Tecumseh AG163UT-038-J7

Frequently Asked Questions

• What is the cooling capacity of the HRP047T1LP6?
  It provides approximately 47,000 BTU/h or 3.9 tons of cooling capacity with R407C at standard conditions.
• What oil does it use?
  It comes precharged with 1.33 L of PVE oil (160HV).
• What are the electrical requirements?
  208-230V, 1 phas
