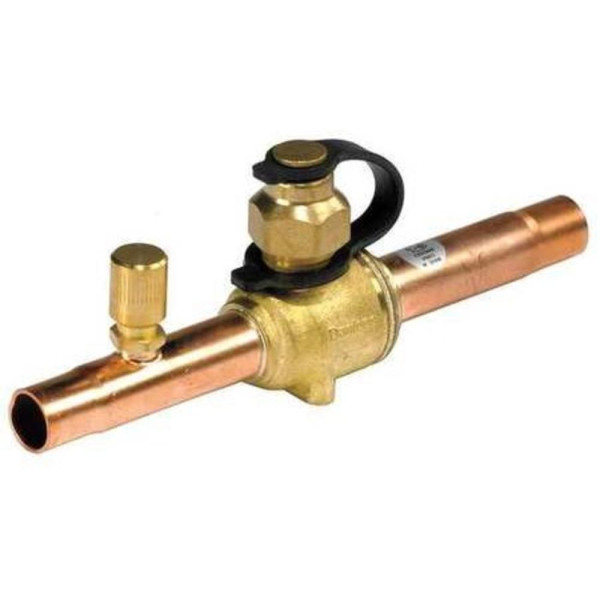

Danfoss 009L8052 Shut Off Ball Valve 1/2in, ODF GBC 12s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE schrader Valve Bi-Flow 009L7052 Replaces 009G7052, 009G8052

Danfoss 009L8052 Shut Off Ball Valve 1/2in, ODF GBC 12s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE schrader Valve Bi-Flow 009L7052 Replaces 009G7052, 009G8052
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Replaces BVE-012, 806734, BVS-012, 806754, AP17861C, AQ17861C, 937204, 6570N/4A, BV4A, SV20A012R0000, SBV(M)-JA4YHSY-1-SA, 10150054002

Weight : 0.54 LBR
Volume : 0.182291667 FTQ
Model : 009L8052
UPC-EAN : 5702428866613

Reference G009G8052

Condition New

Data sheet

Product Characteristic: The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant

Replaces BVE-012, 806734, BVS-012, 806754, AP17861C, AQ17861C, 937204, 6570N/4A, BV4A, SV20A012R0000, SBV(M)-JA4YHSY-1-SA, 10150054002
Model: 009L8052
UPC-EAN: 5702428866613
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 9 x 5 x 7
