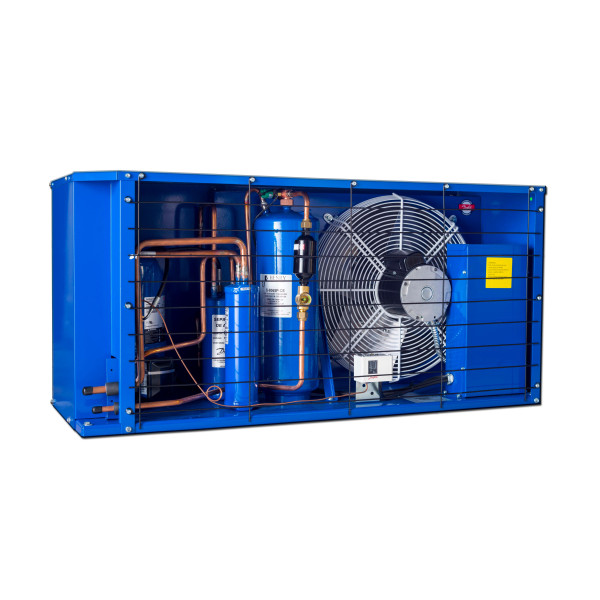

Danfoss OP-LJZ108D40Q Condensing Unit Microchannel Coil 4.5HP LBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor NTZ108-3 115N0689
SKU
G115F0689
Danfoss OP-LJZ108D40Q Condensing Unit Microchannel Coil 4.5HP LBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor NTZ108-3 115N0689
Condensing Unit for Low Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Low Back Pressure R404A 17,417 BTU/h at evaportaing Temperature -13F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 295.42 LBR
Volume : 11.74 FTQ
Model : LJZ108D40Q
UPC-EAN :
Condensing Unit for Low Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Low Back Pressure R404A 17,417 BTU/h at evaportaing Temperature -13F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 295.42 LBR
Volume : 11.74 FTQ
Model : LJZ108D40Q
UPC-EAN :
Danfoss OP-LJZ108D40Q Condensing Unit Low Temp for Freezers
This item will replace various brands and models including but not limited to:
Replaces:LCZ050E40Q, LCZ044E40Q, LJZ108D40Q, 114N3353, 115F0689
G115F0689
New
Data sheet
- Product Characteristic
Condensing Unit for Low Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Low Back Pressure R404A 17,417 BTU/h at evaportaing Temperature -13F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in- Model
- LJZ108D40Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 27.09 x 45.28 x 16.54
Specific References
- UPC
- MPN
- LJZ108D40Q
