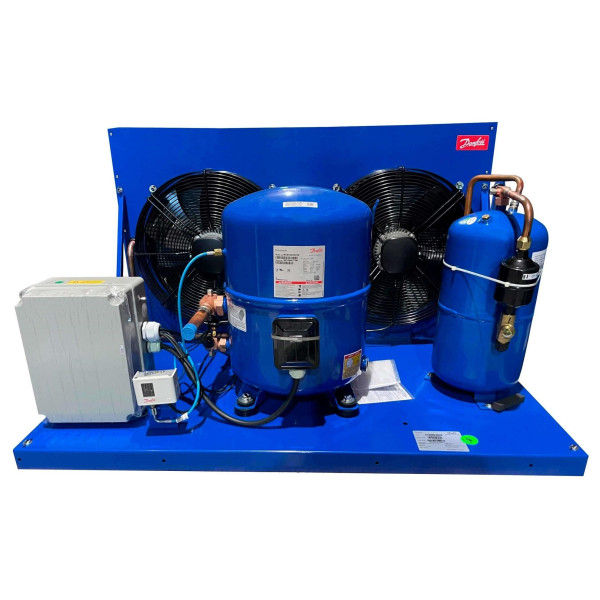

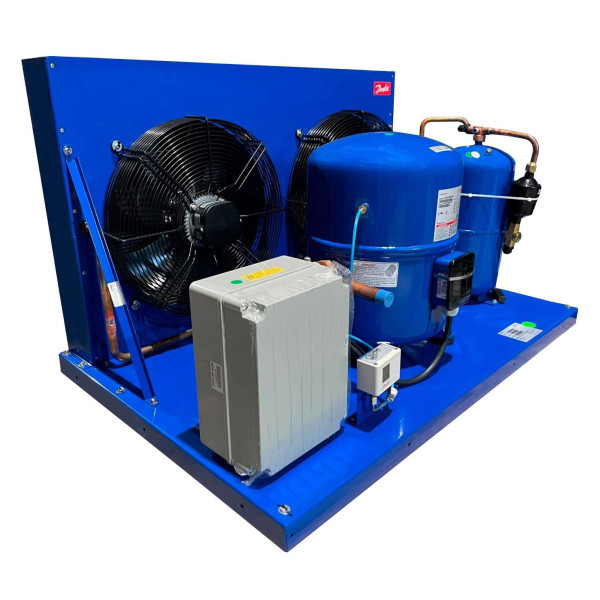

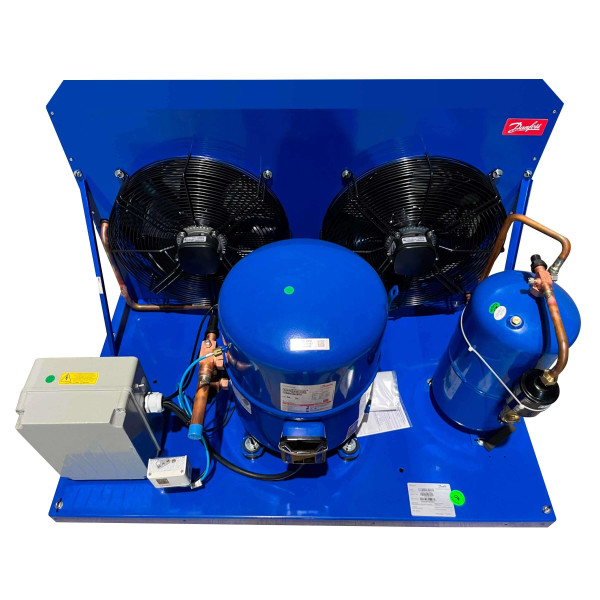

Danfoss OP-HGZ100D39Q Condensing Unit Microchannel Coil 9HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fan with Reciprocating Compressor MTZ100-3 115N0315
SKU
G115F0315
Danfoss OP-HGZ100D39Q Condensing Unit Microchannel Coil 9HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fan with Reciprocating Compressor MTZ100-3 115N0315
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 51,078 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 5/8 Liquid Side. 2 Axial Fan 17-3/4 in
Weight : 357.15 LBR
Volume : 24.24 FTQ
Model : HGZ100D39Q
UPC-EAN :
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 51,078 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 5/8 Liquid Side. 2 Axial Fan 17-3/4 in
Weight : 357.15 LBR
Volume : 24.24 FTQ
Model : HGZ100D39Q
UPC-EAN :
Danfoss OP-HGZ100D32Q Condensing Unit Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HGM100E32Q, HGZ100E32Q, 114N3313, HGM100D32Q, HGZ100D32Q, 114N3318, 115F0315
G115F0315
New
Data sheet
- Product Characteristic
- Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 51,078 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 5/8 Liquid Side. 2 Axial Fan 17-3/4 in - Model
- HGZ100D39Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 28.15 x 47.24 x 31.5
Specific References
- UPC
- MPN
- HGZ100D39Q
