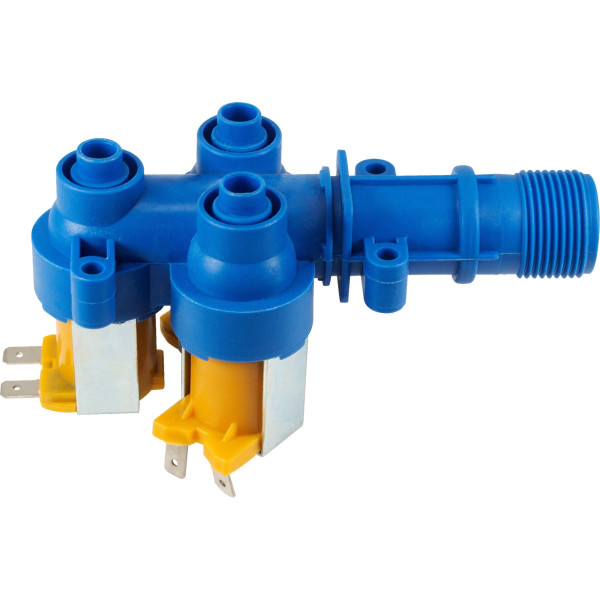

Appli Parts APIV-1311 Water Inlet Valve 1 Inlet 3/4in NPT and 3 Outlets 5/16 in 110-120 V, 50/60 Hz replaces Mabe models 189D3116P017, 189D3116P016, 189D3116P005, WW01F00794

Tags washer washing machine 189D3116P005 WW01F00794 33590078 189D3116P017 mabe olimpia

Appli Parts APIV-1311 Water Inlet Valve 1 Inlet 3/4in NPT and 3 Outlets 5/16 in 110-120 V, 50/60 Hz replaces Mabe models 189D3116P017, 189D3116P016, 189D3116P005, WW01F00794
Use: for controlling water inlet in certain washing machines
Fits: Will fit several models replacing Mabe Olimpia 189D3116P017 189D3116P016 189D3116P005

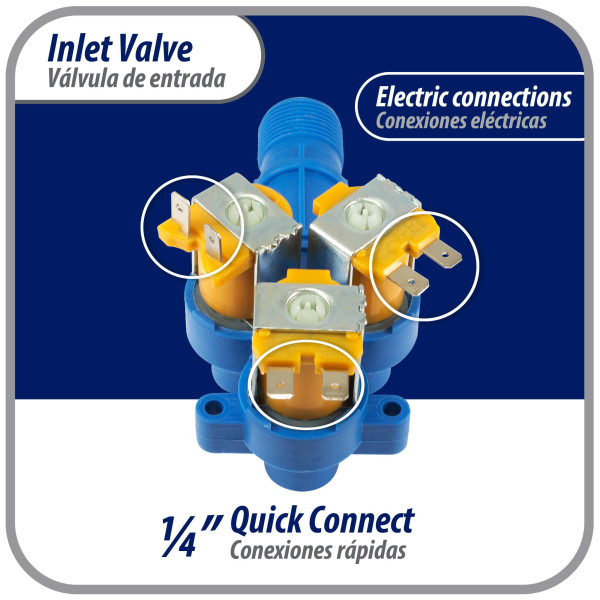

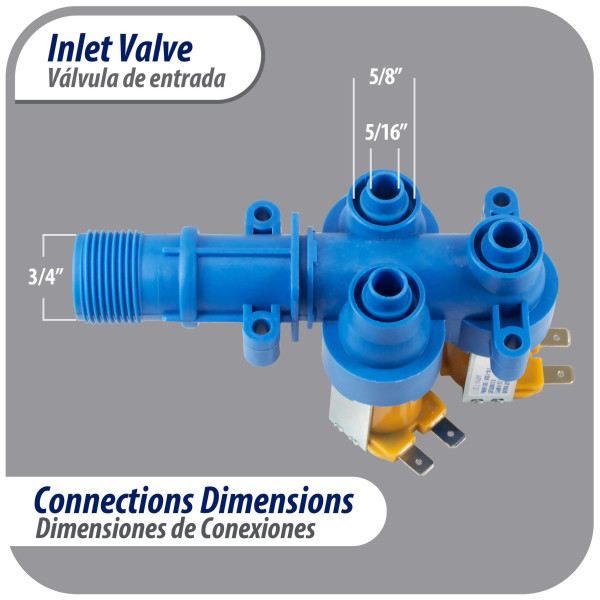

Size: Inlet is 3/4 in NPT, 3 outlet ports with 5/16 in quick connect

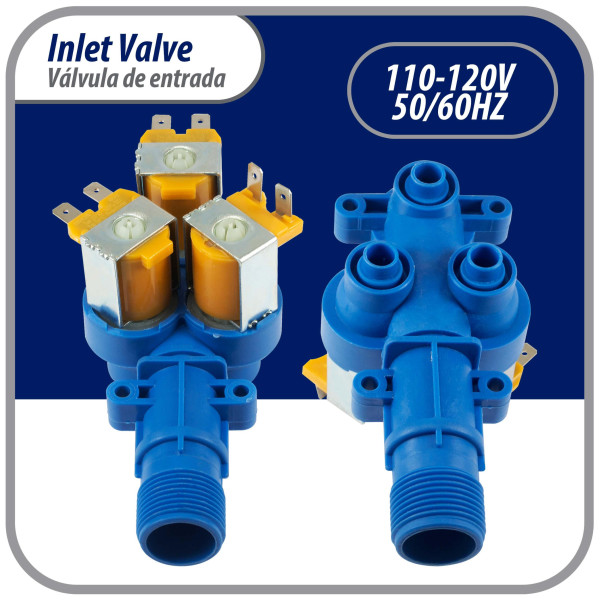

Voltage: Suitable for 110 to 125V and 50 or 60Hz applications
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced

Weight : 0.56 LBR
Volume : 0.02734375 FTQ
Model : APIV-1311
UPC-EAN : 814245028398

Water Inlet Valve Appli Parts APIV-1311

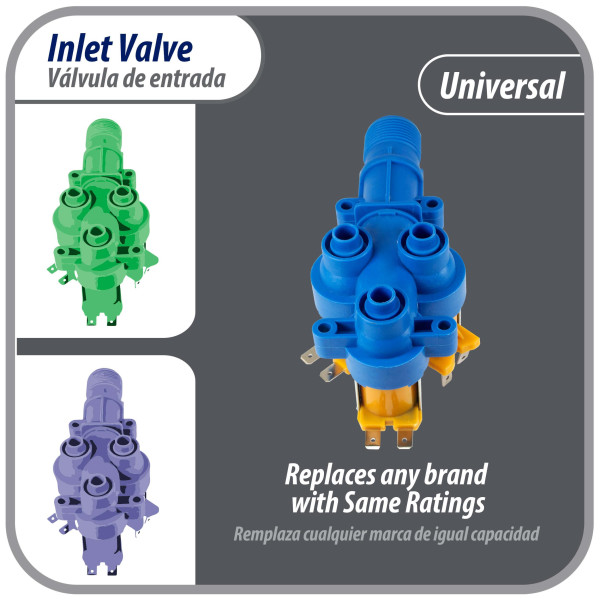

This item will replace various brands and models including but not limited to:

Replaces: 189D3114G015, 189D3114G015F, 189D3116P005, 189D3116P011, 189D3116P016, 8103117, WW01F00086, WW01F00794, WW01F00919, WW01L00443, WW02F00207

Reference G023116

Condition New

Data sheet

Product Characteristic: Use: for controlling water inlet in certain washing machines

Fits: Will fit several models replacing Mabe Olimpia 189D3116P017 189D3116P016 189D3116P005

Size: Inlet is 3/4 in NPT, 3 outlet ports with 5/16 in quick connect

Voltage: Suitable for 110 to 125V and 50 or 60Hz applications
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Model: APIV-1311
UPC-EAN: 814245028398
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA

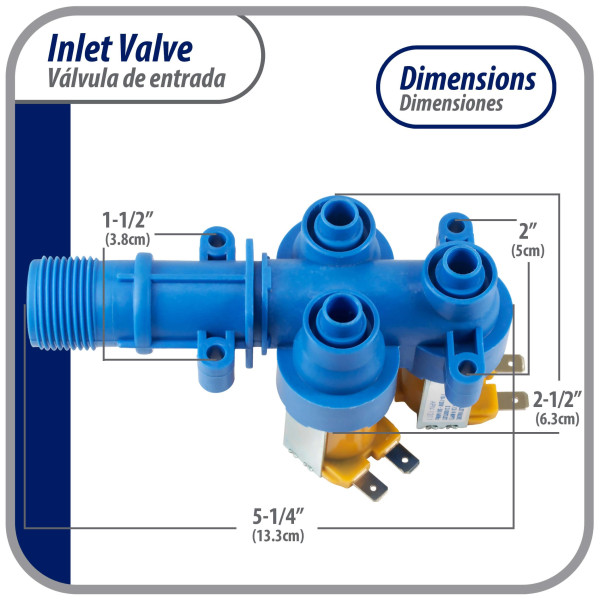

Dimensions: 3 x 3 x 5.25
