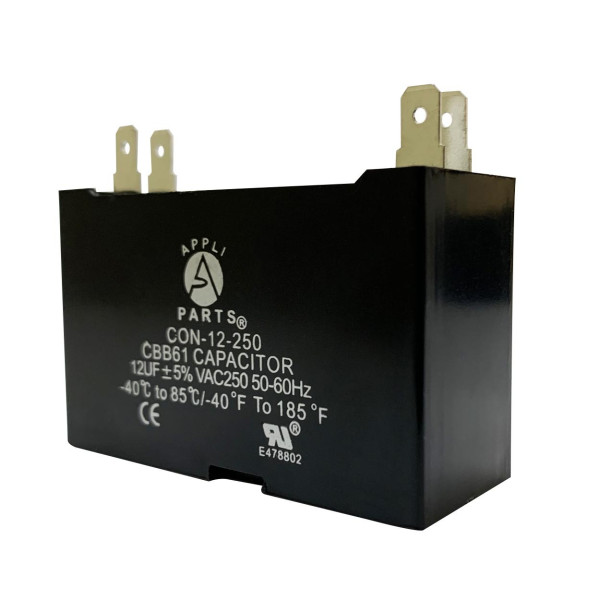

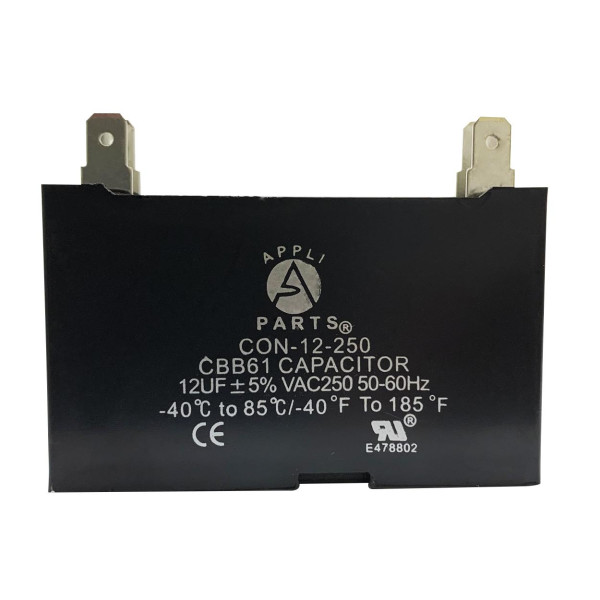

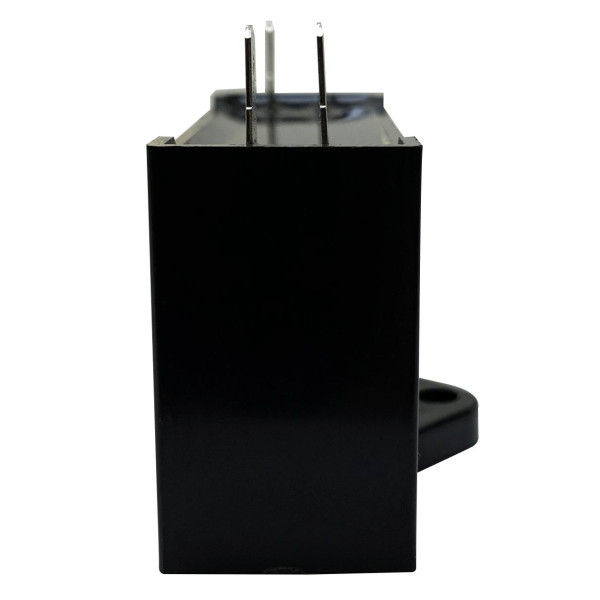

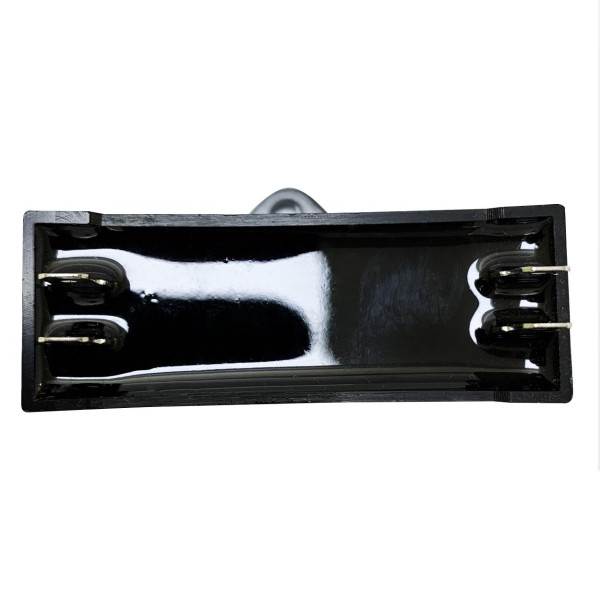

Appli Parts CAP-12-250 Fan Capacitor 12 mfd (microfarads) uf 250 VAC with 4 Terminal Connections compatible with any brand within the same range of capacitance 2-1/4 Width, 7/8 Depth, 1-3/4 in Height

Tags fan for ceiling capacitor capacitors hunter cbb61 c61 speed 5uf 10uf

Appli Parts CAP-12-250 Fan Capacitor 12 mfd (microfarads) uf 250 VAC with 4 Terminal Connections compatible with any brand within the same range of capacitance 2-1/4 Width, 7/8 Depth, 1-3/4 in Height
Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250VAC 1/16 in Male Quick-connect

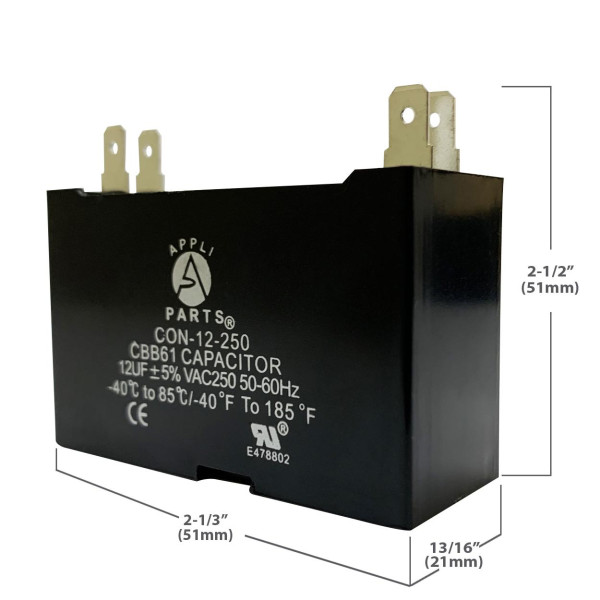

Specs: Tolerance is +/- 5% of capacity, working temperature environment from -40F (-40C) to +185F (85C), 50/60 Hz. Dimensions 2-1/2 in H, 2-1/3 in W, 13/16 in L
Applications: Fan capacitors have multiple applications, for ceiling fans, electric motors
Replaces: CAP-12-250 CON-12-250
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced

Weight : 0.51 LBR
Volume : 0.00335693 FTQ
Model : CAP-12-250
UPC-EAN : 814245023737

Reference G1111.CV122

Condition New

Data sheet

Product Characteristic: Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250VAC 1/16 in Male Quick-connect

Specs: Tolerance is +/- 5% of capacity, working temperature environment from -40F (-40C) to +185F (85C), 50/60 Hz. Dimensions 2-1/2 in H, 2-1/3 in W, 13/16 in L
Applications: Fan capacitors have multiple applications, for ceiling fans, electric motors

Replaces: CAP-12-250 CON-12-250
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Volume: 0.00335693 FTQ
Model: CAP-12-250
UPC-EAN: 814245023737
Sales Unit: EA
Origin: China
US Tariff Code: 8532.25.0010
Base Unit: EA
Dimensions: 9 x 9 x 9
